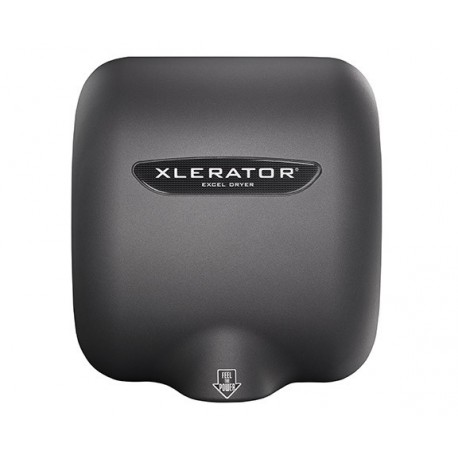

Xlerator Hand Dryer XL-GR

Xlerator Textured graphite zinc cover.

Feel the Power! Dry Hands in 10-15 s.

Energy-efficient, uses 80% less energy.

Save money and reduce your carbon footprint.

More details

XL-GR

579,00 € tax excl.

700,59 € tax incl.

In stock!

Drying time10-15 s
ActivationAutomatic
Material(s)Textured graphite
Electrical SpecificationsWatts: Max 1400 / Volts: 220-240 / Amps: 6.5 / Hertz: 50-60
Motor typeBrush
RPMs20000
Motor watts460 W
Timed shut-off2 Seconds after hands are removed.
Cover screwsTamper Proof
Warranty5 years
Air velocity16,000 Linear Feet per Minute
Motor horse power5/8
Heating elementAdjustable 0-1030 Watts
Air temperature increase35°C
Safety automatic shutoff35 seconds
Product CertificationsGREENSPEC Approved
DimensionsH 322 x W 298 x D 170 mm

The Xlerator hand dryer from Excel is the original and premier high speed hand drier. A sharp and robust design and high efficiency makes it the favorite of restrooms where high standards are important!

 NEW ENHANCED FEATURES

- Motor speed and sound control: Adjust to create the best balance between noise level and dry time

- Heat control: Adjust heat level for the most comfortable dry and the best balance with energy efficiency and costs saving. High, medium, low and off.

- Sensor control: Adjust to control how close hands are before dryer starts to activate.

- Easily Visible LED Diagnostic for Easy Maintenance: A complete list of troubleshooting codes is listed in the provided owner's manual without opening the cover!

Speed is a key factor in the efficiency of a hand dryer:

  • improves hygiene by thoroughly drying hands, since moisture promotes the spread of bacteria.
  • saves costs, the Xlerator uses 80% less energy than conventional dryers.
  • saves the environment by reducing the carbon footprint per drying.

Making the choice of technological performance with a hand dryer like the Xlerator manufactured in the USA, means also cost savings up to 95% over paper towels, by eliminating towels costs, maintenance and waste.

Read our analysis about Hand dryers vs. paper towels and Calculate your Facilities Savings vs. Paper Towels. See our document in the downloads section.

The XL-GR uses a cover that is made of die-cast zinc with a textured graphite finish.  This charcoal-black color is popular in many restrooms and matches a white, chrome or stainless steel décor nicely.

Discover as well the other Excel Dryer Xlerator models on our site and the Xlerator XL-C with a polished chrome-plated cover.

Learn more about Xlerator Green certifications in the Downloads section.



greenspec_banner



Specifications

  • Textured graphite zinc cover
  • Automatic
  • Dries Hands in 10 to 15 Seconds
  • Noise reduction nozzle included (9 dB less by reducing air deflection noise)
  • Uses 80% Less Energy than conventional hand dryers
  • 95% Cost Savings vs. Paper Towels
  • GREENSPEC® Listed and Helps Qualify for LEED® credits.
  • 5 years warranty



Dimensions

  • Dimensions : H 322 x W 298 x D 170 mm
  • Weight : 7.26 kgs



Construction

  • All covers are fastened to a base plate by two chrome plated tamper-proof bolts.
  • The hand drier base plate is equipped with (3) 7/8" (22 mm) diameter holes, and the bottom one is suitable for use with surface conduit.
  • Entire mechanism is internally grounded.



Mechanism

  • Hand drier motor is thermally protected, series commutated, through-flow discharge vacuum motor/blower (5/8 hp / 20,000 rpm) and provides air velocity of up to 19,000 LFM (linear feet per minute) at the air outlet and 16,000 LFM at the hands (4 inches below air outlet).
  • The heating element (970 w) is constructed of Nichrome wire and mounted inside the blower housing, thereby being vandal proof. It is protected by an automatic resetting thermostat, which opens whenever air flow is cut off and closes when flow of air is resumed. It produces an air temperature of up to 135°F  at a 72°F  ambient room temperature at the hands (4 inches below air outlet).
  • The control assembly is activated by an infrared optical sensor located in the hand drier next to the air outlet. The hand drier operate as long as hands are under the air outlet. There is a 35-second lockout feature if hands are not removed.



Xlerator Dimensions



Xlerator new features

Enhanced product line with new standard features

Heat control

Adjust to control heat level for the
   most comfortable dry. High, medium, low and off.

Sensor control

Adjust to control how close hands are
   before dryer activates.

Motor speed and sound control

Adjust to create the best balance between
   dry time and noise level

Easily Visible LED Diagnostic for Easy Maintenance

Now it's easy to monitor the health of your
   XLERATOR without even opening the cover!
   A complete list of troubleshooting codes
   is listed in the provided owner's manual.
